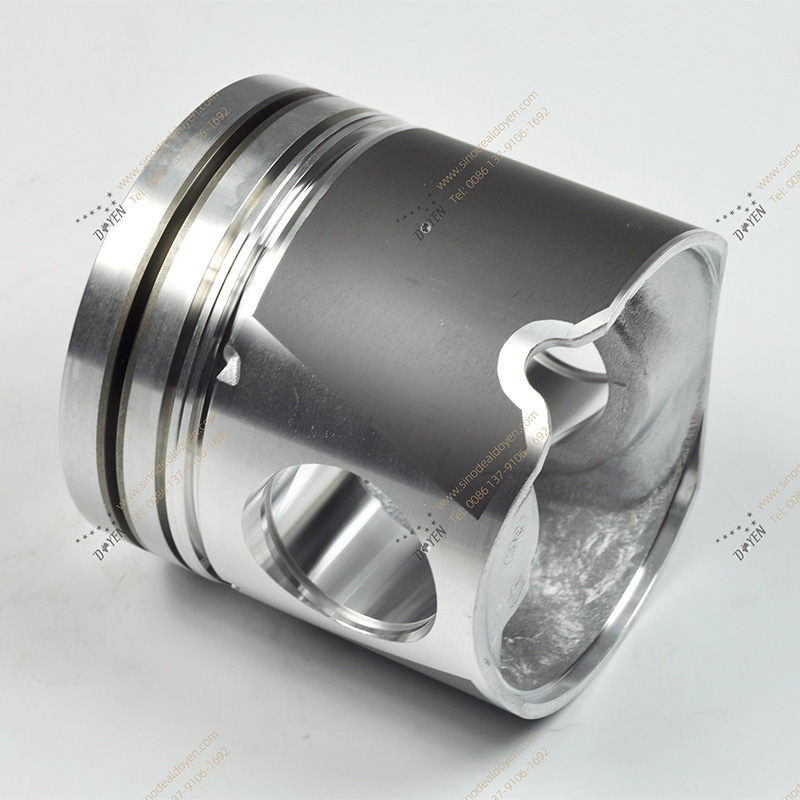

STEYR WD615 piston 61560030705

STEYR WD615 piston assy 61560030705

61500030061 & 61500030017 & 61500030060 & 61560030016

Piston motor WD615, WD615.50, WD615.63, WD615.64, WD615.68
(D = 126mm)

OEM SINOTRUK/WEICHAI
615600030009
615600030010
VG1560030010

OEM STEYR
61560030009,
61560030010,
61560030705

KOLBENSCHMIDT 126007, 126007RI
MAHLE ORIGINAL 3210300

Technical details
- outer diameter = 126mm
- combustion chamber diameter = 72mm
- bolt diameter = 50mm
- segment channel = 3 (trapezoid) * 3 * 4mm
- height 1 = 117mm
- height 2 = 133mm

Use

- motor WD615.50
- motor WD615.62
- motor WD615.63
- motor WD615.64
- motor WD615.68
- motor WD615.87

other pistons:

Engine model No. Diameter                    (Фmm)
STEYR WD615.67 61560030016  126
STEYR WD615.68    61560030009 126
STEYR WD618        61800031001 126
WD618-4N 61800030055A 126

Standard size [STD]:, Screw : 50 mm, Screw length: 105 mm, Part number: 22828, 39011, 87258,
Quantity: 3, Manufacturing number: 126004, Hole spacing: 126 mm, Compression height: 80 mm,
Length: 133 mm, recess depth 1: 25.97 mm, Valve bag depth 1: 0.5 mm, recess diameter: 68 mm
triggers:
- 93096600
WD615
STEYR
614 03 07 02
615 00 01 0020
615 00 03 0017
615 00 03 0038
615 00 03 0061
615 00 03 0701
615 00 03 0702
615 00 03 0704
615 00 03 0706
615 00 03 0710
615 60 03 0007
615 60 03 0017
615 60 03 0020
615 60 03 0701
615 60 03 0704
615 60 03 0707
